Portable Type A 16.5V 20km 20W Solar Obstruction Warning Light

Specification
Type:GS-MS/A
Power Supply:Mono crystalline silicon solar panel
Battery capacity:12V24AH
Solar panel power:8W×4
Solar panel voltage:16.5V
Power consumption:≤20W
Visual range:20km
Light source:LED
Storage temperature:-40℃～70℃
Working Temperature: -40℃～50℃
Weight:15kg
Continuous working time in rainy day: > 20days( work 10 hours a day)
IP Standard:IP67
Ligh intensity:2000cd-20000cd
Light Source Service Life:＞100000 hours
Optional Emitting Color:white
Battery Type:Lead-acid battery
Battery life:3years
Solar panel life:＞20years
Vertical Divergence:≥3°
Horizontal Out-put:360°
Overall Size(mm):325mm×325mm×437mm
Installation Size: Pitch circle 270mm distributed 4M8 holes
Anti-wind Ability:80m/s
Working mode: flashing 40-60times/min
Optically Controlled Ambient Brightness:300LUX±100LUX
Standard:FAA L-865/866

Function & Features
1. Continuous working time in rainy day can reach more than 20 days (10 hours a day) .
2. Photocell can switch ON the light in rainy days or at night automatically.
3. Standardization of optical design, high photoelectric conversion efficiency.
4. CREE LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
5. Provide ability of lightning protection, light fastness, resist snow and rain.
6. LED technology, work stability, long service life and save maintenance cost.
7. Inner adopts solar lead-acid battery whose service life can more than 2 years.

Usage notice
1. Please read the instruction carefully and then use the device correctly.
2. Solar powered Aviation obstruction light must be installed in a sunny place to keep it working continuously.
3. Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4. If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5. Please turn off the device and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6. If there any other problem please contact us.

Application
High building
Bridge
Tower
Telecom tower
Chimney
Runway
Heliport
Traffic barrier
Tower crane

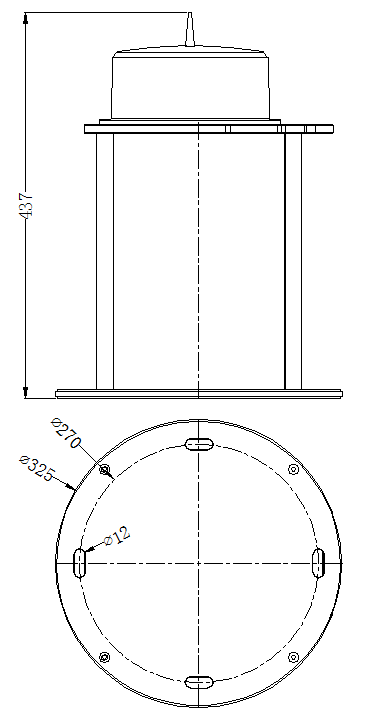

Dimension drawing
