600mm Glass Fiber 6.3KG Aircraft Warning Sphere

Specification
Model:GS-AWS
overall size:600mm×741.5mm×600mm
Installation size:Adapt to wire 35mm~150m ㎡
Optional color:Red,white,orange
Reflection coefficient: 0.3~0.7
Optional material:Glass fiber,FRP
Ambient temperature:-55 ℃~85℃
weight: 6.3KG
Wind loading: 80m/s

Features
1. Adopts high reflection coefficient coatings.
2. Aluminum Alloy material clamp,Light weight and convenient to install.
3. Glass fiber material,light weight and high strength.

Attention / Usage Tips
1. To avoid causing accident,installers should do good personal safety measure.
2. No beat,press heavy for long time,to avoid damaged,transformation that will effect on Installation.
3. To avoid falling off in the future,Clamp fixed screw must be checked if tightening.

Application
Overhead transmission line
Ultrahigh-tension transmission line
River-crossing transmission cable
Ultrahigh cable

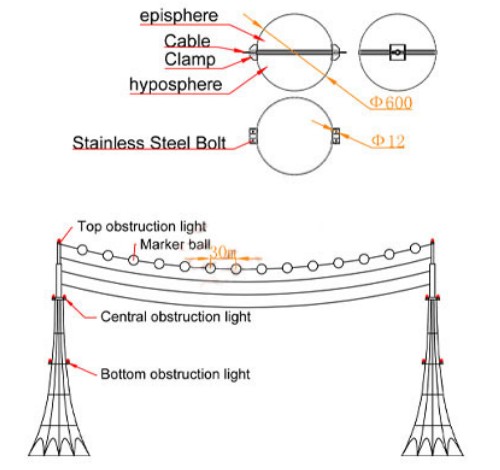

Dimension drawing

    Shenzhen Green Source Light Equipment Co.,Ltd is a high technology enterprise engaging in research aviation light,helipad light,marine lantern, solar garden/street light, and traffic warning light, which located in Shenzhen China.
    Since 2010, we design,manufacture and supply all kinds of above lights.

    We offer full solution from production to arrangement service according customer requirements.The company dedicated these lights development and production for many years,complying with international standards and recommendation from NO.14 attachment of ICAO,request of FAA and relevant standards of MH-T6012-1999.

    We made a long term development strategy plan that our company, all team member will keep on improving , pursuing technical renovation & better quality, serving our customer heart and soul.

    Our pursuit is with high quality, vary kinds, competitive price and best service to create first -class product to satisfy all our customers needs.
