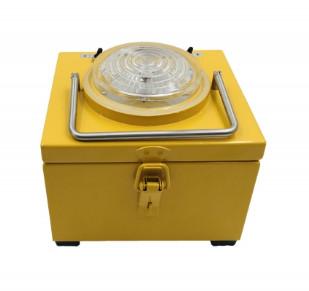

Removable Recharging LED Perimeter Light

Specification
Model No.: GS-HP/EYD
Power Supply: DC3.2V
Battery type: Explosion proof special battery 3.2V20AH
Optical Structure: Tempered Glass Reflective Optics
LED Brand: CREE
Average Power Consumption: ≤ 3W
Working Mode: Steady burning
Light Intensity: ≥25cd
Emitting Angle: Meet ICAO standard
Light Source Service Life: ≥20 years
Emitting Color: Green (Customized with Red, Yellow, Blue, White)
Overall Size: 165mm x150mm x 140mm
Transport Mode: Hand carrying or truck transportation
IP Protection: IP65
Ambient Temperature: -50℃～70℃
Net Weight: 5.8Kg
Shell Material: Stainless steel ＋ Aluminum alloy
Humidity: ＜95%
Altitude: ＜4500M

Function & Features

1. Stable work, anti-electromagnetic radiation, anti-vibration, suitable for radar-intensive areas.
2. Fully sealed structure, superior waterproof performance.
3. With anti-surge protection device.
4. Imported CREE high power LED chip, high brightness and long life.
5. Reflective tempered glass optical structure, optical performance meets ICAO requirements.
6. The product is highly compliant with ICAO standards.
7. Explosion-proof airport dedicated battery, suitable for using in a variety of harsh environments and war occasions.
8. Built-in advanced circuit management system, with short circuit protection, high / low temperature protection, charge / discharge protection functions.
9. Lightweight design of aviation-grade materials, suitable for transportation of SOS rescue equipment at various airports.
10. Fast charge design, which effectively saves charging time.
11. 10 km remote control switch function optional.
12. Removable charging battery design, convenient for replacement of backup battery and fast charging.

Usage notice

1. Don't use any out of nominal voltage,or will destroy equipment.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

Application
Various military and civilian airports
Heliports
Helipad
Temporary Helipads
Temporary Runways
Emergency Rescue
Training Grounds

Dimension drawing
