Description
GS-HP/EYD Moveable airport light the main shell adopts aviation
aluminum alloy material, which can be used for a long time in the
harsh marine environment.
LLED light source combined with advanced optical lens design, and
the luminous angle conforms to FAA and CAAC standards.
It can provide boundary indications for airport runways, taxiways,
and heliports, and can send out omnidirectional light signals at
night or during the day with low visibility to clearly indicate the
corresponding location of the airport.
It is suitable for emergency rescue airports, temporary combat
readiness airports, and airport standby lights. The standby lights
can be quickly activated through the remote control after the
airport power facilities are damaged.
Function & Features
- Integrated structure and movable design, easy to install and
charge.
- Built-in integrated solar charging function, with perfect
protection circuit, can be used in military radar for a long time,
work stably under radiation and radio radiation.
- Built-in dedicated high-power LED chips, and the product height
does not exceed 250mm.
- An external toggle power switch and reset switch are designed at
the bottom of the product.
- Fully sealed structure, waterproof performance up to IP67.
- The single-chip microcomputer control circuit combined with the
constant current control system has an overall design life of more
than 10 years.
- The color of the light can be adjusted by remote control or
manually, and the remote control distance is more than 2-10
kilometers.
Specification
| Name | Parameter |
| Model | GS-HP/EYD |
| Power Supply | External rechargeable |
| Battery voltage | 12.8V |
| Battery capacity | 14AH |
| Battery type | Anti-explosion type A grade ternary lithium battery |
| Battery life | 3~5 years |
| Average Power Consumption | ≤1W |
| Wireless Control Distance | The best distance is 5～10KM, with repeater 10～20KM |
| Working Mode | Steady-burning |
| Emitted color | Adjustable color green, white, yellow or can be customized |
| Horizontal Beam Angle | 360° |
| Dimming level | Comply with military standard |
| Light Source Service Life | ≥20 years |
| Overall Size | ￠260mm(D)×202m(H) |
| Installation Size | ￠220mm×M10 |
| IP Protection | Light IP67, Remote IP67 |
| Ambient Temperature | -50℃～60℃ |
| Weight | 7.4KG |
| Humidity | ＜95% |
| Altitude | ＜4500M |
| Standard | Comply to ICAO Annex 14,FAA AC 150/5345-46B |
Luminous intensity
| Heliport boundary lights |
| Color | Center Maximum Light Intensity (CD) | Working hours in rainy days(H) |
| White | ≥50 | ≥60h |
| Green | ≥25 | ≥130h |
| Yellow | ≥25 | ≥75h |

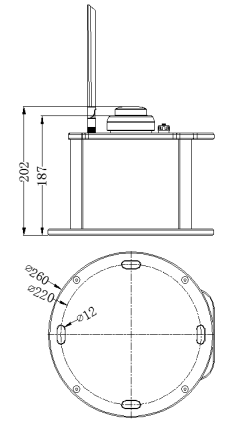

Dimension Drawing
Application
Class I,II,III airports, Various General Aviation Airports,Combat
Readiness Airports, Heliport
Usage Notice
Don't use any out of nominal voltage,or will destroy equipment.
Do not open it if the device is out of operation, in order not to
be hurt by the internal high pressure.
After finished the installation, the personnel must check whether
the device is in a good waterproof processing and whether the screw
spikes are tightened.
Non-professional workers can not do the device maintenance, in
order not to expand the error and be hurt.
